High Power Fiber Laser Tube Cutting Machine 3000mm 6000mm Multi Chuck Automatic Loading Unloading

Name: High Power Fiber Laser Tube Cutting Machine 3000mm 6000mm Multi Chuck Automatic Loading Unloading
Brand: ZLTECH
Price: 12000 USD

Brand Name : ZLTECH

Model Number : ZL-360G12

Certification : CE,FDA

Place of Origin : CHINA

MOQ : 1

Price : USD12000-25000 per Piece

Payment Terms : T/T, D/P, L/C, Western Union, MoneyGram, D/A

Supply Ability : 60pcs/month

Delivery Time : 10-30days

Packaging Details : Plastic protective film, export plywood box

Application : Metal Plate Laser Cutting

Cutting Area : 3000mm/6000mm/9000mm/12000mm

Graphic Format Supported : AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Cooling Mode : WATER COOLING

Laser Source Brand : MAX; IPG, Raycus,JPT

Servo Motor Brand : Japan Fuji, Japan Yaskawa,Panasomic, Delta

Control System Brand : Cypcut

Laser Power : 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W

Voltage : 3 phase,380v,50Hz or customized

Cutting materials : Stainless Steel/Carbon Steel/Copper/Brass/Iron/MS

Laser Head Brand : Raytools,Au3tech, Precitec,Worthing, Empower,WSX

Warranty : 3 years

Contact Now

Tube Cutter Machine Price High Power Multi-Chuck Laser Cutting Machine Automatic Loading Unloading Tube Laser Cutter

(fiber laser machine/metal cut/cnc laser cutting machine)

Specification

Model		ZL-360G12
Laser Output Power		40000W/20000W/10000W/8000W/6000w/4000w/3000w/2000w/1500w
Chuck Quantity		4
Shortest Remaining Material		0
Effective Square Tube Cutting Scope		□6060-□325325mm
Rectangular Tube	Edge Length	60mm-360mm
	Outer Circle Diameter	≤460mm
Effective Round Tube Cutting Diameter		Φ60-Φ460mm
Max. Machinable Tube Length		12000mm
Max. Chuck Rotating Speed		40r/min
X/Y-Axis Positioning Accuracy		0.06mm
X/Y-Axis Repositioning Accuracy		0.04mm
Max. Tube Weight		1800kg

High Power Fiber Laser Tube Cutting Machine 3000mm 6000mm Multi Chuck Automatic Loading Unloading

1.Four chucks clamping & zero tail materials Innovative three-chuck clamping technology, the chuck clamping force is adaptive to the pipe, realize accurately clamped; The casting integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning cutting; The three chucks operate in coordination, after the chuck through the middle chuck internal cutting operation.

2.Wide range of pipe cutting it supports the processing of 12000mm ultra-long whole workpiece, channel steel, angle steel, I-beam and other profiles, and the maximum load-bearing capacity of a single pipe is 900KG.

Application

Widely used in the furniture industry, lighting industry, fitness equipment industry, automotive industry, home appliances manufacturing, kitchenware, etc.

--Tube length:3000mm/6000mm/9000mm/12000mm
--Diameter: φ15~φ360 mm
--Laser power: 1000W-40000W

Square tube, rectangular pipe, OB tube, D type tube, triangle tube, elliptical pipe, equal diameter and other special shaped tube

Cutting Thickness

Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. :)

Product Quality

Stable & Strong Welded Steel Bed

The integrated processing technology of high-precision gantry machine tool, through furnace annealing and aging treatment, the stability and cutting precision of the bed are greatly improved and the service life of the bed is prolonged.

Controller

We use FSCUT3000S,FSCUT5000, Weihong, etc.If you want to use another controller you needs, we support adjust configurations.

TubesT is a 3D tube nesting software for the TS series. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.

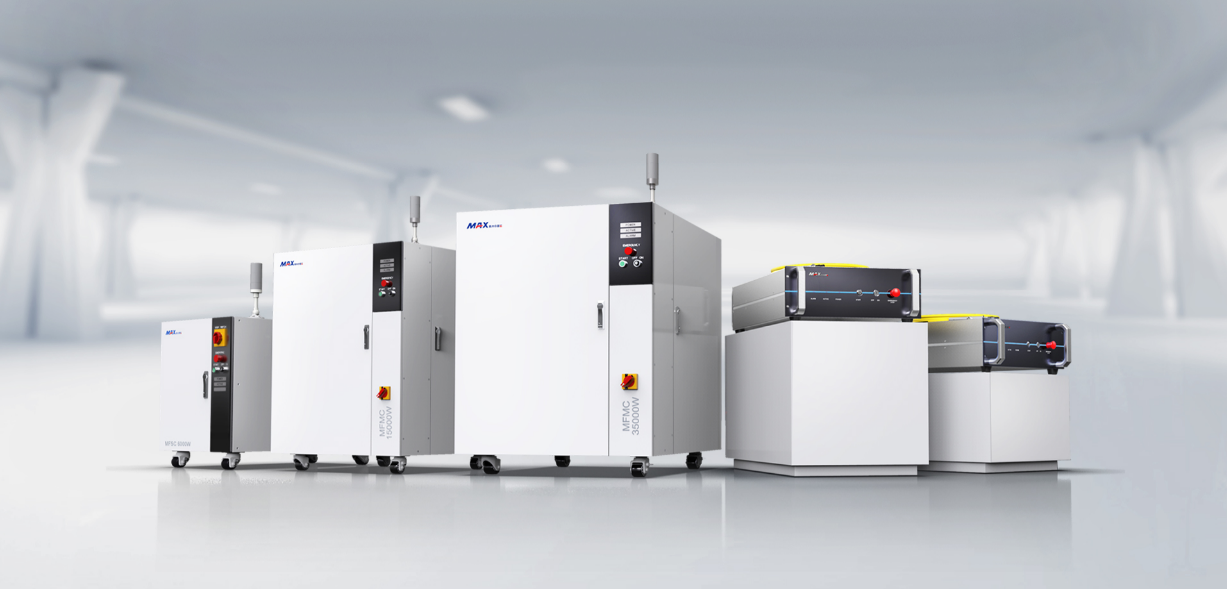

Laser source

We use Raycus, JPT, IPG, MAX or other laser source, we support it according to customers needs.

Auto Focus Laser Cutting Head

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time,improve the perforation quality and cutting speed. It’s simple, convenient and fast.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

Our double-sided follow-up support device It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.

BEUT Pneumatic Chuck

A well-known brand, the rear cassette has an air blowing function to remove dust and waste accumulation, and does not affect the performance and service life of the rear chuck.

Gear transmission Chuck

Accuracy, speed and life are better than belt transmission.

Automatic Loading and Unloading Part Design

Completely servo control during feeding process,parameterized control, no manual intervention required.

Water chiller

Each of the cooling circuit is independently controlled and has its own mission - one serves for cooling the fiber laser and the other serves for cooling the optics. The water chiller for cooling laser source and laser head, we use S&A, Hanli, DVT water chiller you can choose you needs.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.

The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

Servo motors and drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

Good Quality Gears

Adopts Taiwan YYC / Germany HERION gears, which can make the
machine position accuracy reach to 0.01mm

Reducer

Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers

Company Profile

ZLTECH Laser is a professional manufacturer of fiber laser cutting machine. We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.

In order to ensure high precision, each equipment has undergone fine milling and high temperature aging treatment, and the structure will not be deformed after long-term use. To provide customers with tailor-made services to meet
different work needs, ZLTECH has established an independent R&D department with 12 professional engineers. ZLTECH will update and innovate regularly.

Why Choose Us

High Quality Requirement from ourself

In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.

Strict Quality Control

ZLTECH has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.

Independent and Experienced R&D Department

In order to provide customized services and meet different working requirement for our customers, ZLTECH established one independent R&D department, which has 12 professional engineers. ZLTECH will update and innovate regularly.

Professional After-Sale Service

ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.

1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.

FAQ

1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?
Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3.How about the shipping cost?
Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4.How long can delivery the machine ?
Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5.How about the payment?
T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.

6.What is the maximum length of pipe that your machine can support?

Our machine can support maximum 3m/6m/12m length of pipe, you can choose suitable cutting length according to your requirements.

7.Do You Have Agent Or Distributor In Our Country?
There are so many end-users in your country, and we are looking for agent in your country, do you have any interest?
